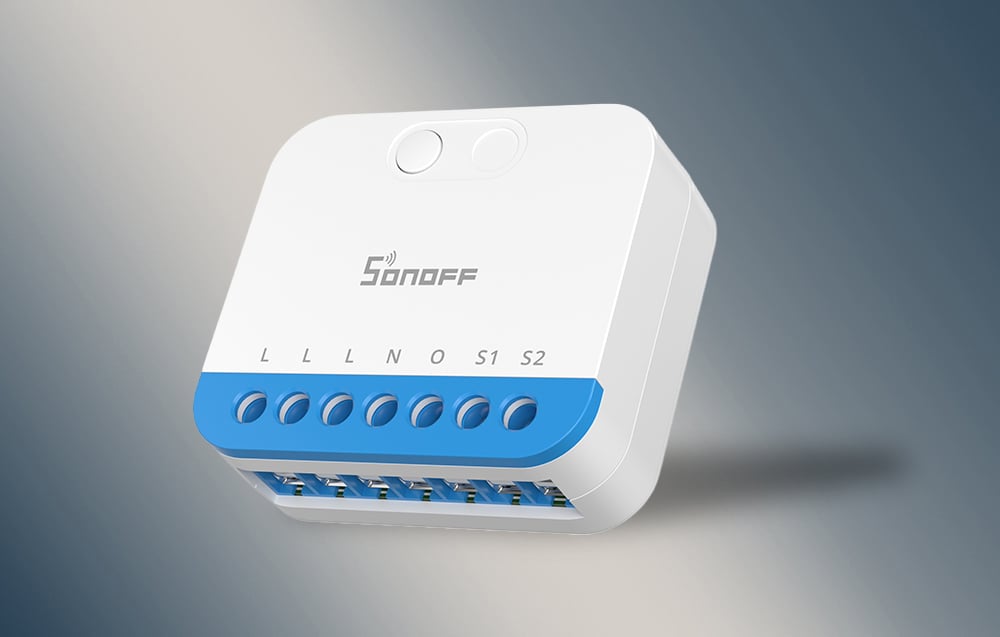

Intelligent mini controller / dimmer Sonoff MINI-ZBDIM Zigbee
Sonoff MINI-ZBDIM Zigbee is an intelligent in-wall controller and dimmer that transforms regular lighting into an advanced smart home system. It offers smooth brightness adjustment from 0–100%, on/off functionality, schedules, timers, scenes, energy monitoring, and control via an app and voice. It operates on the Zigbee 3.0 standard, acts as a network router, extends the range of the entire installation, and is compatible with many gateways and platforms – from eWeLink to Home Assistant. Its small size, high power (up to 400 W), automatic calibration, and advanced security features make it a reliable solution for any modern home.

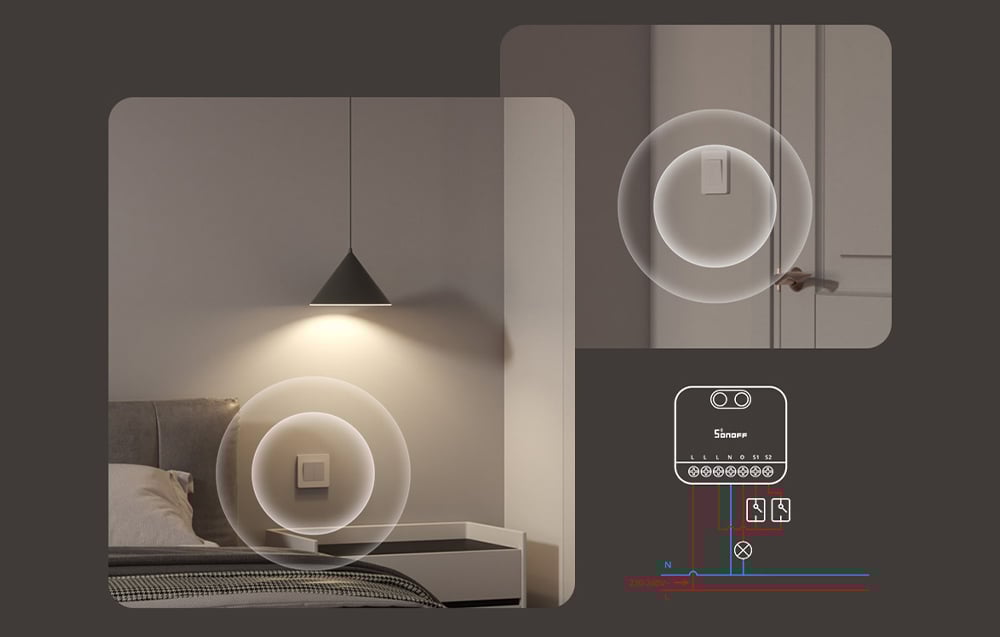

Zigbee 3.0 – stable connection and greater range of the entire network
Zigbee technology provides fast responses, low energy consumption, and independence from WiFi. The MINI-ZBDIM acts as a router, meaning it amplifies the signal and extends the range of the mesh network, helping other devices communicate more efficiently even in larger apartments and houses. The result? More stable operation of the entire system and fewer dead zones.
Compatibility without limits.
The module connects easily with popular Zigbee gateways such as ZBBridge-P, ZBBridge-U, NSPanel Pro, iHost, as well as USB dongles for Home Assistant (ZBDongle-P/E, Dongle Plus MG24, Dongle Lite MG21, or Dongle Max). Integration with eWeLink, Home Assistant (ZHA, Zigbee2MQTT), and even... Apple Home through Matter Bridge gives you the freedom to choose a platform and develop a system without being locked into one ecosystem.
Smooth dimming without flickering
Advanced trailing-edge dimming technology provides smooth brightness control without flickering or buzzing. The MINI-ZBDIM works with dimmable LEDs up to 200 VA, traditional bulbs, and halogens up to 400 W, as well as electronic transformers up to 200 W. One device can handle both gentle nightlight and full lighting for a living room or kitchen.
Control from the app, voice, and scenes – intelligence for everyday life.
From the application level, you can set schedules, timers, inching mode, power outage state, light scenes, and automations tailored to your lifestyle. Voice control allows you to adjust brightness or turn off the light without getting up from the couch, and the built-in energy consumption measurement helps control costs. Additionally, automatic and manual brightness calibration adjusts the dimming range to a specific lamp, eliminating issues with minimal brightness levels.

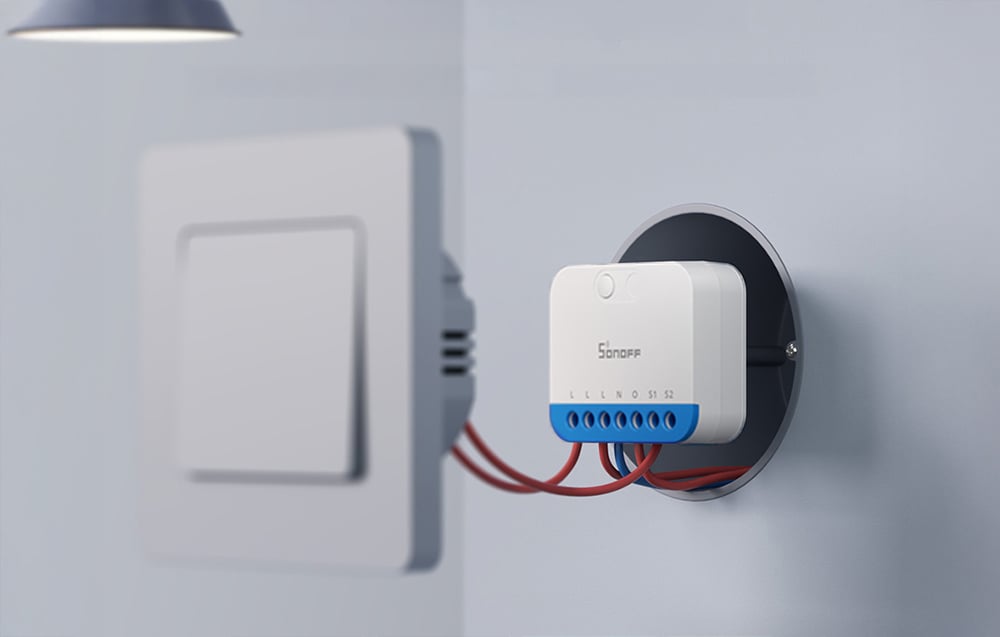

Miniature construction, maximum possibilities in a wall-mounted box.
The compact dimensions of 45 × 39.4 × 16.8 mm make the module easily fit into standard EU, 86, and 120 mounting boxes. You install it behind the traditional switch and maintain the classic look of the wall, gaining full smart functionality without renovations and additional devices on the surface.

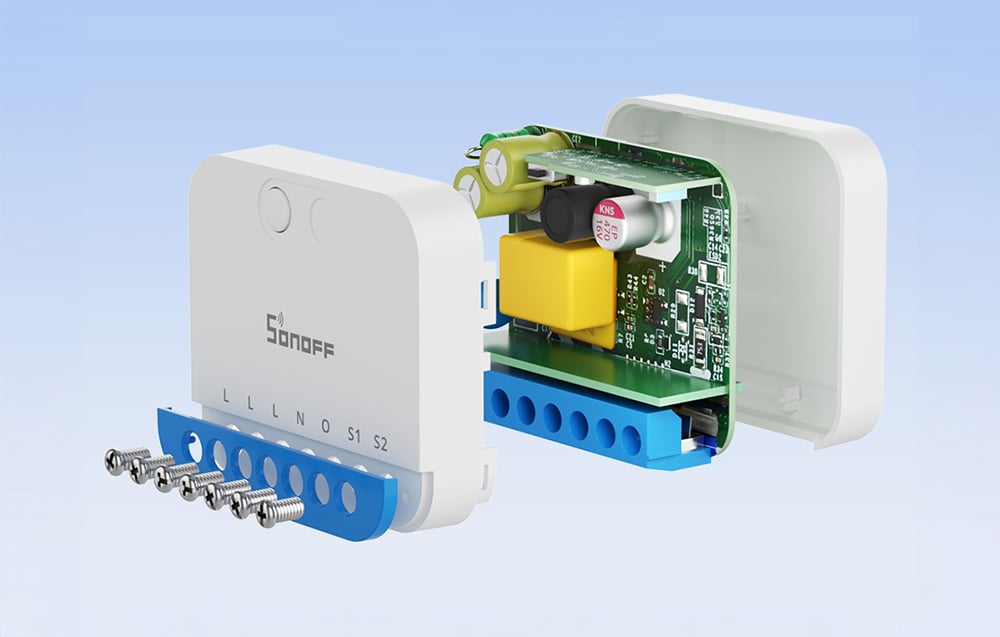

Safety and durability of premium class – assurance for years.
The housing made of flame-retardant PC material (class V-0), NTC temperature sensor, overheating protection, surge protection, and solid wire terminals ensure stable and safe operation even under high load. The efficient EFR32MG21 chip provides reliable Zigbee communication, and the CE and RoHS certifications along with a 2-year warranty confirm the quality you can rely on every day.
In the set:
- Smart dimmer Sonoff MINI-ZBDIM
- User manual
| Producer | Sonoff |
|---|---|
| Model | MINI-ZBDIM |
| Device type | Zigbee in-wall smart dimmer switch. |
| Communication standard | Zigbee 3.0 |
| Radio protocol | IEEE 802.15.4 |
| Role in the Zigbee network | Router (mesh signal amplification) |
| Control Unit (MCU) | EFR32MG21 is a model of a wireless microcontroller from Silicon Labs, specifically designed for Internet of Things (IoT) applications. It features low power consumption, integrated radio, and various connectivity options. |
| Power supply voltage | 220–240 V AC |
| Frequency | 50 Hz |
| Maximum power of resistive load | 400 W |
| Maximum LED load | 200 VA |
| Supported types of lighting | Dimmable LED, traditional bulbs, halogens, electronic transformers. |
| Dimming technology | Trailing-edge (smooth, flicker-free) |
| Dimming range | 0–100% |
| Brightness calibration | Automatic and manual |
| Energy monitoring | Yes |
| Application control | Yes (eWeLink) |
| Voice control | Yes (through compatible hubs and platforms) |
| Handling scenes and schedules | Yes |
| Inching mode (auto shut-off after a period of time) | Yes |
| Remembering the state after a power outage | Yes |
| Operation of the external switch | Yes |
| OTA updates | Yes |
| Required neutral wire | Yes |
| Housing material | PC material, flame retardant (class V-0) |
| Color | White |
| Dimensions | 45 × 39.4 × 16.8 mm |
| Weight | 24.5 g |
| Recommended cross-section of wires | 18–16 AWG, copper |
| Compatible mounting boxes | EU, 86, 120 |
| Installation location | Internal |
| Operating temperature | -10°C to 40°C |
| Working humidity | 5–95% RH, non-condensing |
| Security | Overheating (NTC), surges, shock protection |
