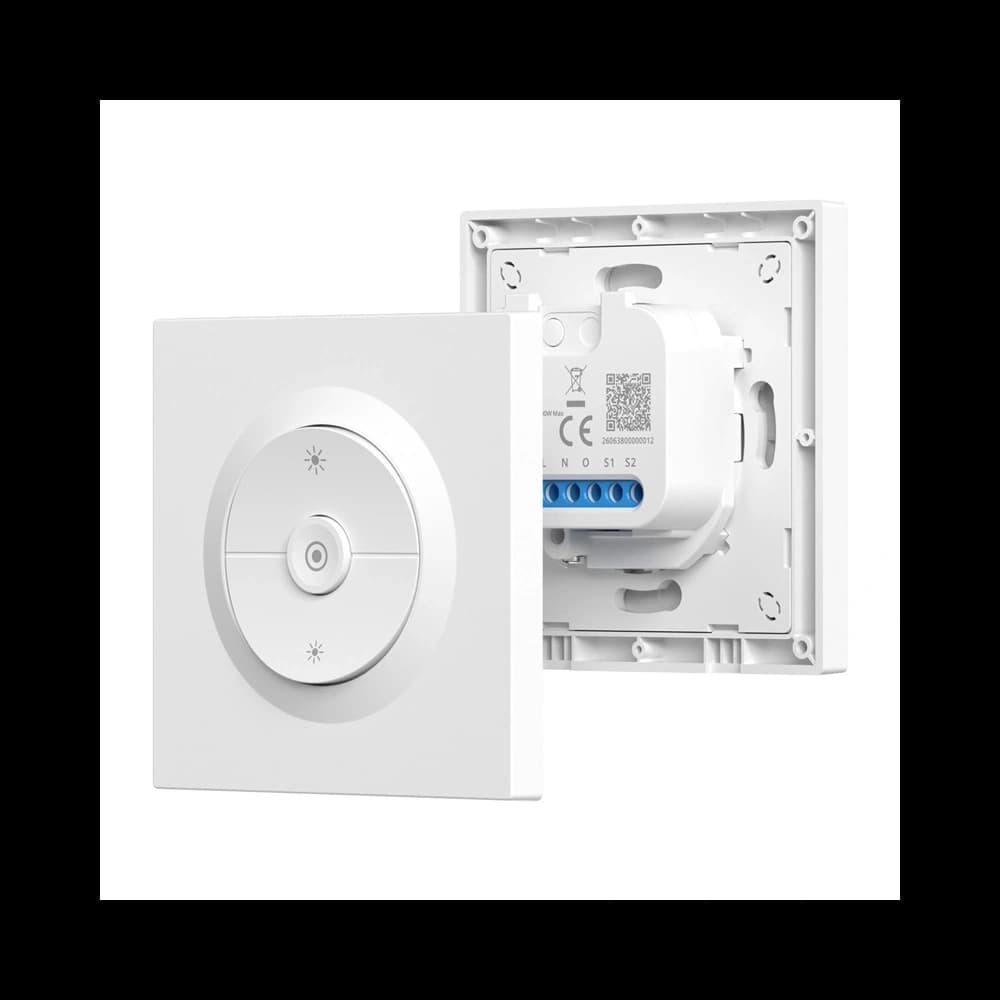

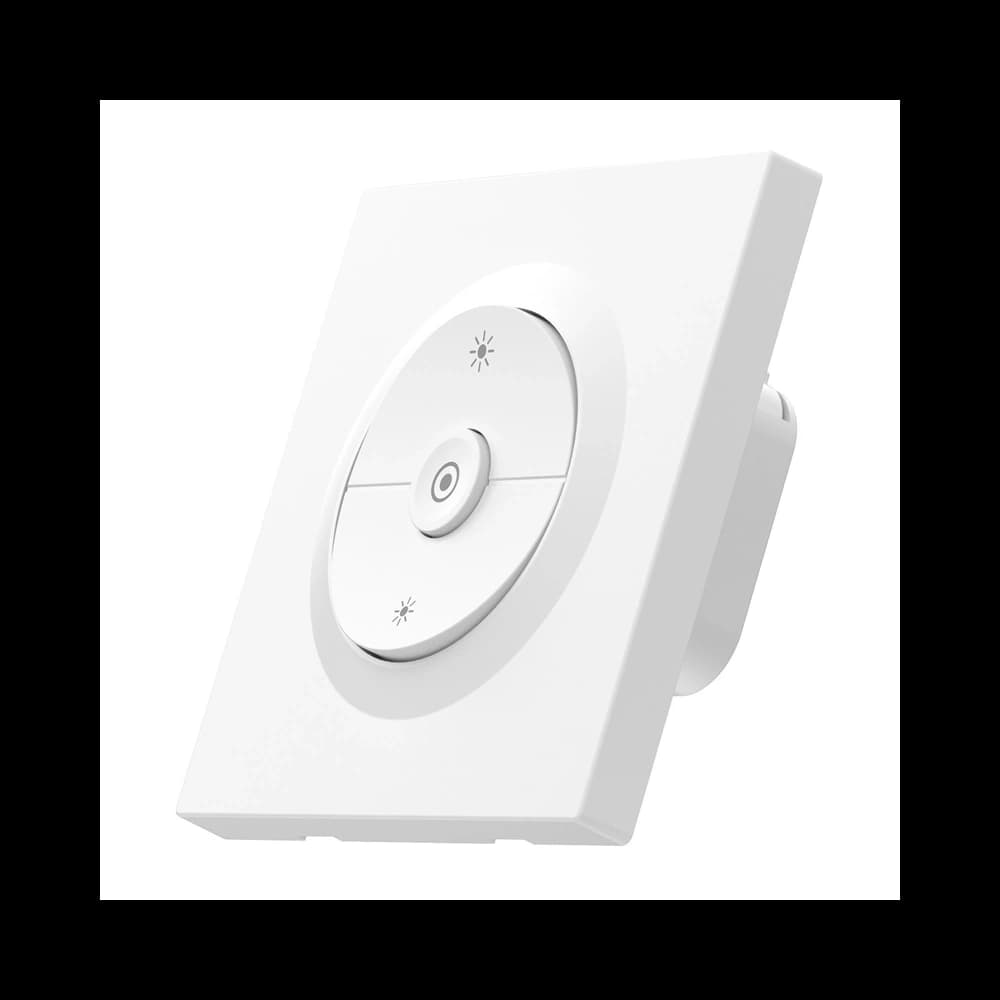

Smart switch / wall dimmer SONOFF MINI-ZBDIM-E ZigBee
SONOFF MINI-ZBDIM-E is an intelligent switch operating on the ZigBee 3.0 standard, designed for smooth lighting adjustments in the range of 0–100%. It allows for the creation of scenes, schedules, and monitoring of energy consumption. With its ZigBee router function, it not only controls the lighting but also strengthens the signal throughout the smart home network, improving its stability.
Stable ZigBee 3.0 communication and the role of the router
The device operates in the IEEE standard. 802.15.4 (ZigBee 3.0) acts as a router in the network. This means that it relays the signal, increasing the range and reliability of communication between devices. This is particularly important in larger apartments and houses, where the signal needs to pass through several rooms. The switch works with eWeLink gateways, such as ZBBridge-P, ZBBridge-U, NSPanel Pro, or iHost. It can also be integrated with Home Assistant via ZHA or Zigbee2MQTT using dongles from the SONOFF series.
Smooth dimming and user comfort
MINI-ZBDIM-E allows for brightness adjustment across the full range from 0 to 100%, enabling precise light adaptation to the situation. Additionally, the trailing-edge dimming used enhances compatibility with modern light sources and reduces flickering. The device also supports automatic calibration, making it easier to adjust to a specific load.
Wide compatibility with lighting
The dimmer works with various types of light sources. It supports dimmable LEDs up to 200 VA, traditional and halogen bulbs up to 400 W, and dimmable electronic transformers up to 200 W. This makes it suitable for most home lighting installations. Note: the product is not intended for fluorescent lamps, LED strips, or inductive loads such as fans.
Monitoring energy consumption
The built-in power measurement function allows you to monitor the current energy consumption of the connected lighting. In the app, you can check the current operating parameters, which makes it easier to manage energy consciously and adjust the brightness level to actual needs.
Scenes, schedules, and voice control.
The device allows for the creation of smart scenes and schedules that automatically adjust the lighting according to the time of day or other events in the system. You can set automatic dimming of the lights in the evening or turn them on at a specific time. Voice control is also possible using Amazon Alexa or Google Assistant and remote management from the eWeLink application.
Safety and durability
The device is equipped with protection against overheating, overloading, and overcurrent. The casing is made of flame-retardant PC material, and the entire unit meets CE and RoHS standards. The relay used has been designed for long and stable operation, which translates to greater reliability in daily use.
Standard installation and compact dimensions

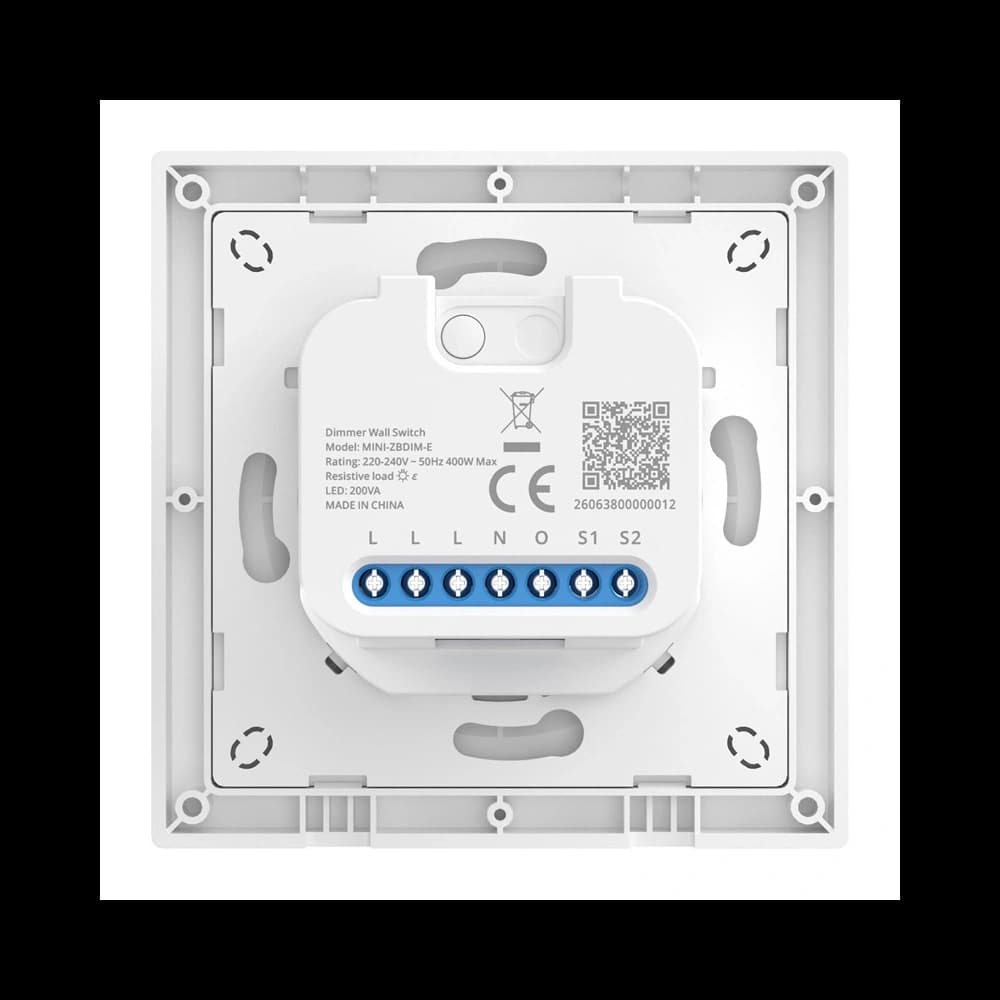

The dimmer is designed for use in installations of 220–240 V ~ 50 Hz and requires a neutral wire. It fits into 86 type boxes as well as European round boxes with a diameter of 60 mm. Its compact design facilitates installation both in new systems and during the modernization of existing equipment.
In the set
- intelligent switch
- Screws x4
- user manual
| Producer | Sonoff |
|---|---|
| Product name | Orb-ZBDIM |
| Model | MINI-ZBDIM-E |
| Housing material | PC |
| Wi-Fi | Wi-Fi IEEE 802.15.4 |
| Operating temperature | -10°C to 40°C |
| Rated voltage | 220–240 V ~ 50 Hz |
| Rated power | max. 400 W |
| MCU | EFR32MG21 |
| LED | 200VA |
| Dimensions | 86 x 86 mm |
